Roll to fold solution

Roll to fold solution

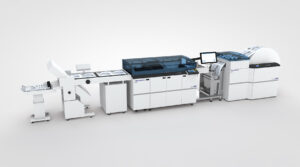

Producing first-class, four-color printed mailings even on coated paper from the roll to the cut and folded end-product. The double cross-cutting cylinder in the CS8 cutting module produces full-bleed documents. The cross-cutting cylinder in the CS8 can be equipped either with two knives for variable chip-out, or with one cutting knife and one perforating blade to produce dynamic folding perforations.

Technical specifications

Max. roll diameter

54" (1370 mm)

Web width

8″ – 22.5″ (203 – 571 mm)

Production speed

up to 600 ft/min (180 m/min)

Paper weights

40 – 300 g/m2

Format length

5.5" – 62" (140 – 1575 mm)

Variable chip-out

1/4" – 2" (6.3 – 50 mm)

Options

Web Inspection System

A Web inspection system checks the quality and content of the printed pages. With the WI8 Web Inspection system you can check quality and content of the printing on each page in terms of colors, positions, contours, smearing, jetouts, data validation, etc. It is always possible to update it with new functions and extend it to a complete tracking solution.

Web Cleaning Solutions

The web de-dusting module PEM removes the dust from the paper webs. The PEM has two de-dusting heads for cleaning both sides of the paper web in continuous operation.

Dynamic vertical and cross perforator DP8

The dynamic perforating module DP8 can be used to create variable longitudinal and cross perforations.

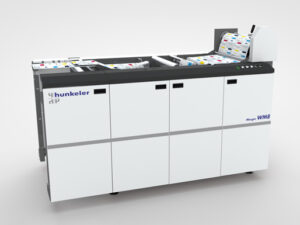

Web Merger - WM8

The web merger WM8 can be used for cutting a wide paper web in longitudinal direction and for putting the two web halves together.  Edge trim left and right available.

Full Bleed products

The combination of longitudinal and cross cut-out (module CS8) allows the user to produce full-bleed products.

Pile stacker PST-52

The pile stacker PST-52 is equipped with two easily removable standard paper trolleys. Once the stack is full, users simply roll out the full trolley, roll the second empty trolley into the stacker and continue production. Additional trolleys are available as an option.
