Digital cutsheet processing system DocuTrim.

Digital cutsheet processing system DocuTrim

Sheet finishing for trimming, cutting, perforating, collating and stacking

  • Multifunctional system for inline sheet processing
  • Produces inline on sheet-fed printing systems and also works nearline
  • High-performance range thanks to the system‘s modular structure


A multifunctional system for inline or nearline cutsheet processing

  • Proven Hunkeler cutting and perforating tools
  • Industrial design
  • Vacuum technology for gentle sheet transport
  • Shorter throughput times and faster reaction to orders

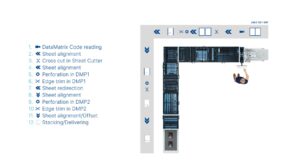

Workflow DocuTrim.
DocuTrim B2+ with new Sheet Cutter in action.

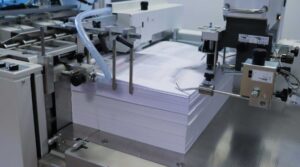

DocuTrim Pile Feeder.
DocuTrim operation display.
DocuTrim Perforation.

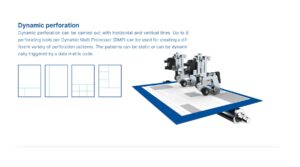

DocuTrim Dynamic perforation.
DocuTrim Sequencer.
DocuTrim Trimming.

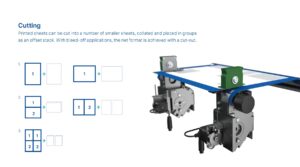

DocuTrim Cutting variations.
DocuTrim Separator.
DocuTrim Stacker.
DocuTrim Conveyor Belt.

Production of high quantity and small production patches

In the high-performance range, printing systems only reach their full potential with efficient finishing systems. The Hunkeler DocuTrim is a multifunctional system for inline sheet processing that satisfies the requirements of the latest generation of printers.

  • Nearline or inline processing
  • Individually upgradeable
  • Small or large print runs

DocuTrim

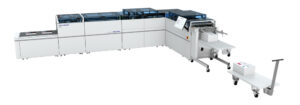

DocuTrim nearline solution.

The Hunkeler DocuTrim is a multifunctional system for inline sheet processing that satisfies the requirements of the latest generation of printers. It can be operated inline to sheet-fed printing systems or also works nearline. With its individually combinable cutting and perforating functions in the Dynamic Multi Processor (DMP), the system already addresses the market requirements of tomorrow. It enables the cutting of various formats and position-independent slit cuts and chip outs. The modular structure allows the system to be tailored to specific application requirements.

DocuTrim B2+

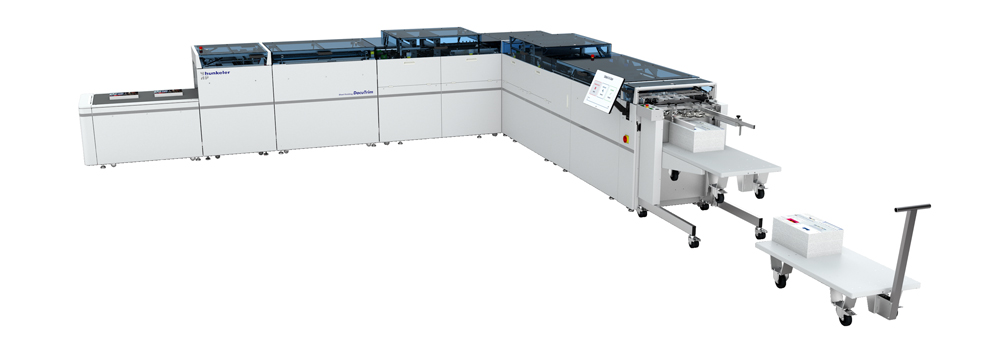

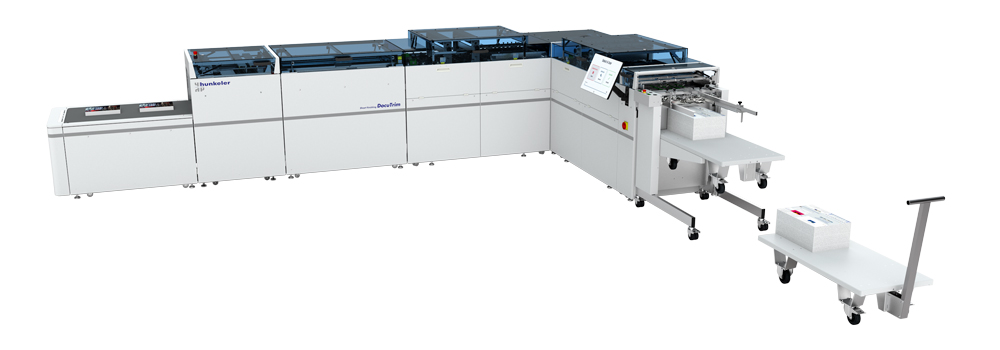

DocuTrim B2+ nearline solution.

Universal sheet processing system Hunkeler DocuTrim B2+ nearline with new Sheet Cutter for high format flexibility up to B2+ sheet sizes. Sheet finishing of mailing products and transactional/transpromo documents for sheet sizes up to B2+. Cutting and dynamic perforations, both lengthwise and crosswise on the sheet format. Chip out for printed materials with full-bleed layouts. Processed sheets are then collected and stacked. The Hunkeler DocuTrim B2+ is able to process sheet formats up to 530 x 750 mm into end-products in the format range A3, A4, A5 and A6.

Configurations

DocuTrim nearline

DocuTrim inline

DocuTrim inline with Canon iX3200

DocuTrim B2+ nearline


Economic aspects

Speed Icon.

Production speed
up to 11 500 sheets/h

Weight Icon.

Paper weight
60 to 250 g/m2

Width Icon.

Wide format range
DocuTrim: 530×520 mm to 176×148 mm
DocuTrim B2+: 530×750 mm to 176×148 mm

Time Icon.

Short set up time
high availability
