Flyfolder Book solution

Flyfolder Book solution

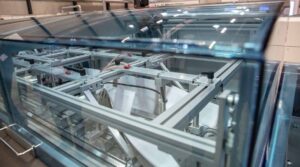

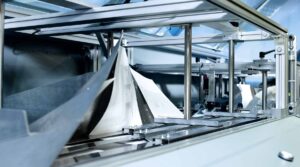

Sheets are folded into signatures by the Flyfolder. Automatic change over between 4-page and 6-page signatures is achieved on-the-fly, avoiding any interruption in the printing process. The excellent stack quality allows for efficient finishing, especially when connected inline with a perfect binder. All signatures can be offset on-the-fly while running through the Flyfolder module (option). The fully automated format change-over is done on the fly, without manual intervention or interruption of the production process.
Request of information

Consultation request

Technical specifications

Max. roll diameter

54" (1370 mm)

Web width

17" – 19.5" (432 – 495 mm)

Production speed

up to 426 ft/min (130 m/min)

Paper weights

60 – 120 g/m2

Cut length

7" – 14" (178 – 356 mm)

Productivity

up to 510 stacks per hour

Workflow

Perforation for 4- (top) and 6-page (bottom) signatures

workflow image

Options

Web Inspection System

A Web inspection system checks the quality and content of the printed pages. With the WI8 Web Inspection system you can check quality and content of the printing on each page in terms of colors, positions, contours, smearing, jetouts, data validation, etc. It is always possible to update it with new functions and extend it to a complete tracking solution.

more information

Control & Tracking Solution

The tracking system monitors ongoing prodcution in terms of completeness and accuracy.

More information
