Booklets and Books Combi-Solution

Booklets and Books Combi-Solution

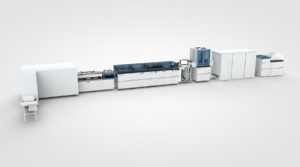

With this combined solution it becomes possible to produce saddle- stitched as well as perfect bound books end products. The centerpieces of this digital production line are the CS8 Cross Cutter and the Bypass unit. The paper web is cut into single sheets by Hunkeler‘s precision rotary cutting system. The Bypass unit allows quick and easy diverting of the output to the inline saddle-stitching system or to the conveyor belt for stacked book blocks (e.g. for transfer to a near line perfect binder).

Technical specifications

Max. roll diameter

54" (1370 mm)

Web width

8″ – 22.5″ (203 – 571 mm)

Production speed

up to 500 ft/min (150 m/min)

Paper weights

40 – 300 g/m2

Stack height

up to 10" (254 mm)

Format length

5" – 19" (127 – 482 mm)
Optional up to 30" (B2 format) with LS8-30

Workflow

Linear cutting, Cross cutting, Separating, Stacking

workflow image

Options

Dynamic vertical and cross perforator DP8

The dynamic perforating module DP8 can be used to create variable longitudinal and cross perforations.

Full Bleed products

The combination of longitudinal and cross cut-out (module CS8) allows the user to produce full-bleed products.

Web Inspection System

A Web inspection system checks the quality and content of the printed pages. With the WI8 Web Inspection system you can check quality and content of the printing on each page in terms of colors, positions, contours, smearing, jetouts, data validation, etc. It is always possible to update it with new functions and extend it to a complete tracking solution.

Control & Tracking Solution

The tracking system monitors ongoing prodcution in terms of completeness and accuracy.

Web Cleaning Solutions

The web de-dusting module PEM removes the dust from the paper webs. The PEM has two de-dusting heads for cleaning both sides of the paper web in continuous operation.

Stacker LS8-30

Up to 30″ sheet stacks with the LS8-30 Stacker. Also compatible with sheet overpass.
