DocuTrim

In the high-performance range, printing systems only reach their full potential with efficient finishing systems. The Hunkeler DocuTrim is a multifunctional system for online sheet processing that satisfies the requirements of the latest generation of printers. It produces online on sheet-fed printing systems or also works offline.  With its individually combinable cutting and perforating in the Dynamic Multi Processor (DMP), the system already addresses the market requirements of tomorrow. It enables the cutting of various formats and position-independent slit cuts and chip-outs. Thanks to the system‘s modular structure, the wide range of solutions can be individually extended.

consultation request
Technical specifications
Production speed * up to 11'500 sheets/h
Paper weights * 60 – 250 g/m2
Gutter cut 6, 8, 10, 12 mm
Sheet format Input * min. 180 x 152 mm (H x W) | max. 520 x 520 mm (H x W)
Sheet format Output * min. 148 x 148/177 mm** (1-up, H x W) | min. 148 x 105 mm*** (2-up, H x W) | max. 520 x 520 mm (H x W) | Stack heights up to 230 mm
Edge trimming width 6 – 40 mm
Perforation tools 1 – 6 pcs. per Dynamic Multi Processor (DMP)
* Depending on application, certain limitations for formats and papers apply
** for 2-up configuration
*** independent of cut out width
Microsoft Teams

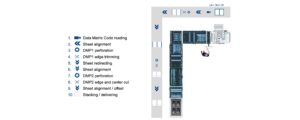

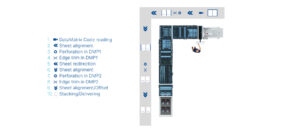

Workflow: SRA3 SEF

Options

Flachstapelanleger

Pile feeder

The sheet delivered by the pile feeder (offline) or directly by the printer (inline) is transferred to the DocuTrim.
