Web speed 220 m/min
Suits all high-speed inserters
Compact design
Narrow and lighter core shafts
Quick and easy roll change
Guided set-up and paper web feeding assistance

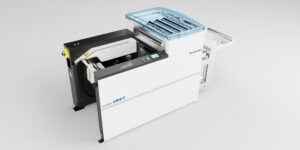

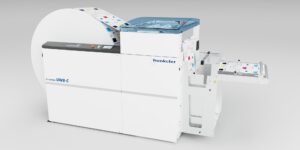

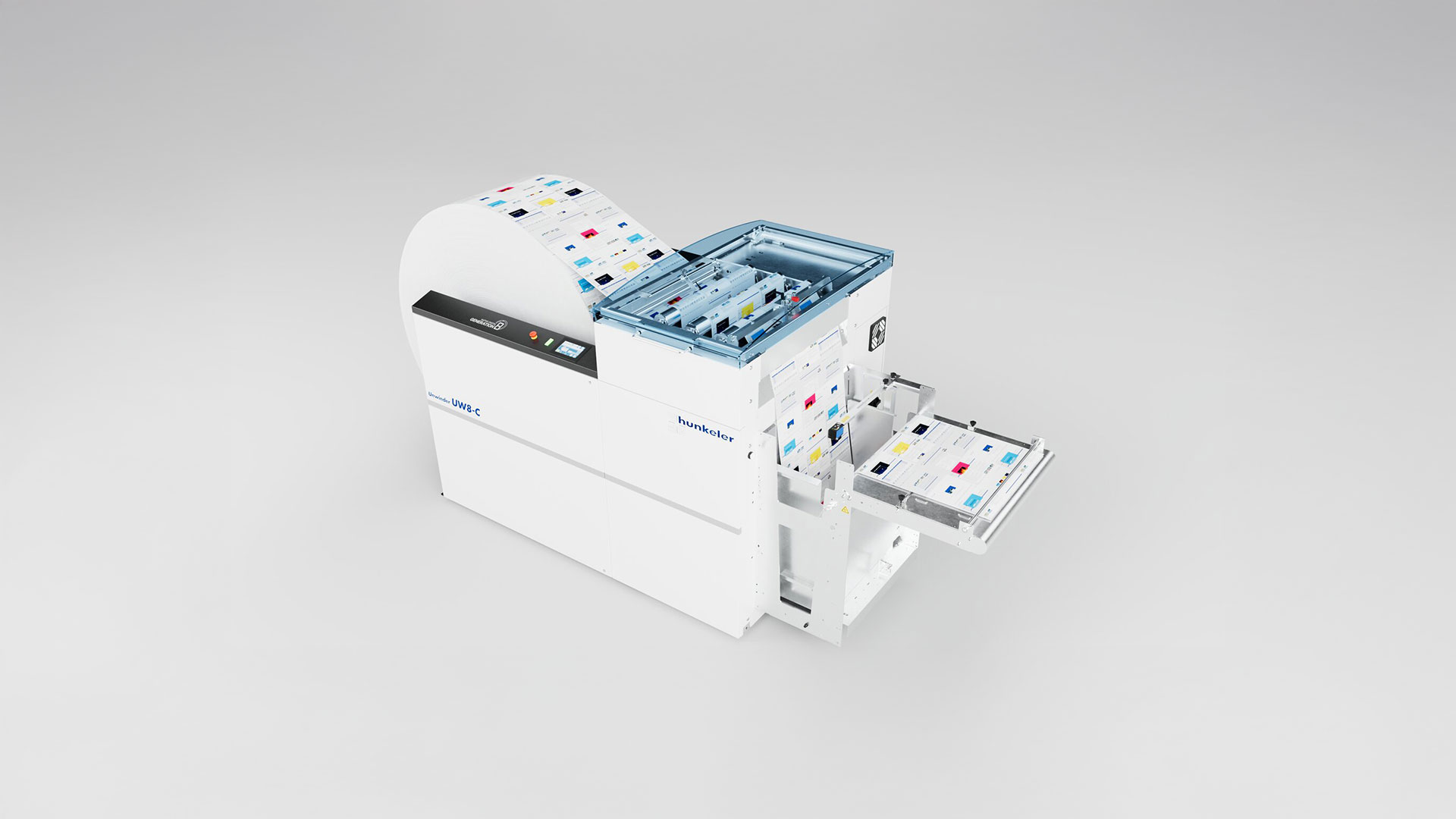

Compact high-speed Unwinder for inserters
The new Unwinder UW8-C is specifically designed to meet the needs of inserter manufacturers and seamlessly support their production requirements.
With its compact design, the UW8-C is ideal for production environments where space is limited. It combines the best of the previous two unwinder generations: the compact footprint of the POPP6 unwinder and the proven mechanics of the widely tested Gen8 drive and control technology.
The result is a powerful all-in-one solution: “plug and play” installation, simple and intuitive operation, maximum reliability, and long service life, all contributing to exceptionally low operating costs.
Contact Form
Technical specifications
| Speed | 220 m/min (720 ft/min) |
| Web width | 165 – 520 mm (6.5ʺ – 20.5ʺ) |
| Paper weight | 40 – 180 g/m2 |
| Max. roll diameter | 1 321 mm (52“) |
| Mains connection | 208 V – 2LPE / 230 V - LNPE |
| Module weight | 850 kg |
Applications
