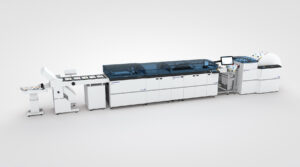

Roll to folded leaflet production lines with Hunkeler unwinder UW8 and cross cutter CS8 combine ease of use and reliable lightweight paper processing at high speeds. Almost any type of folder can be integrated into the line. Different sheet formats in multiple printed panels up to 30 inch format length.

Request of information

Consultation request

Technical specifications

Max. roll diameter

54" (1370 mm)

Web width

8″ – 22.5″ (203 – 571 mm)

Production speed

up to 590 ft/min (180 m/min)

Paper weights

40 – 300 g/m2

Format length

5" – 19" (127 – 482 mm)
Optional up to 30" (B2 format) with LS8-30

Variable chip-out

1/4" – 2" (6.3 – 50 mm)

Options

Full Bleed products

The combination of longitudinal and cross cut-out (module CS8) allows the user to produce full-bleed products.

Web Inspection System

A Web inspection system checks the quality and content of the printed pages. With the WI8 Web Inspection system you can check quality and content of the printing on each page in terms of colors, positions, contours, smearing, jetouts, data validation, etc. It is always possible to update it with new functions and extend it to a complete tracking solution.

more information

Control & Tracking Solution

The tracking system monitors ongoing prodcution in terms of completeness and accuracy.

More information

Stack & Sheet (Combo delivery)

The Bypass unit allows quick and easy diverting of the output to the inline saddle-stitching system or to the conveyor belt for stacked book blocks.

Pile stacker PST-52

The pile stacker PST-52 is equipped with two easily removable standard paper trolleys. Once the stack is full, users simply roll out the full trolley, roll the second empty trolley into the stacker and continue production. Additional trolleys are available as an option.

Stacker LS8-30

Up to 30″ sheet stacks with the LS8-30 Stacker. Also compatible with sheet overpass.
