The web de-dusting module PEM removes the dust from the paper webs. The PEM has two de-dusting heads for cleaning both sides of the paper web in continuous operation.
Excellence in Paper Processing

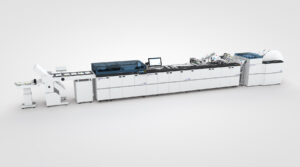

Direct-Mail solution with WF8, WM8 and buckle folder
Direct-Mail solution with WF8 and WM8

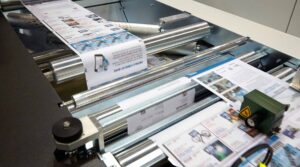

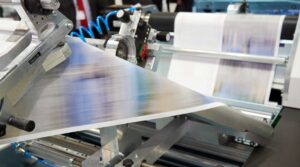

Production of direct mail and a self-mailer from pre-printed roll to folded end-product at a web speed of up to 180 meters per minute. The paper web is linear fold, registered superimposed in a WF8 web folder. Then the paper web is pulled in by the web merger WM8 and cut longitudinally. The edges can be trimmed simultaneously. After that, the two web halves are placed on top of one another in the merger and fed to the cross cutter. The CS8 cutting module performs cross-web chip-out before the sheets are presented in-line to the folding machine.
Technical specifications
| Max. roll diameter | 54" (1370 mm) |
| Web width | 16" – 22.5" (406 – 571 mm) |
| Production speed | up to 590 ft/min (180 m/min) |
| Paper weights | 40 – 300 g/m2 Folding: 40 – 130 g/m2 Merging: 60 – 130 g/m2 |
| Format length | 5.5" – 62" (140 – 1575 mm) |
| Variable chip-out | 1/4" – 2" (6.3 – 50 mm) |
Workflow
Merge process
Options
Dynamic vertical and cross perforator DP8
The dynamic perforating module DP8 can be used to create variable longitudinal and cross perforations.
Full Bleed products
The combination of longitudinal and cross cut-out (module CS8) allows the user to produce full-bleed products.

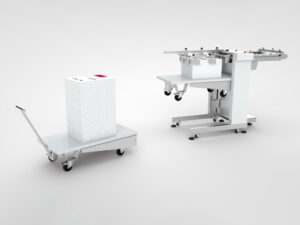

Pile stacker PST-52
The pile stacker PST-52 is equipped with two easily removable standard paper trolleys. Once the stack is full, users simply roll out the full trolley, roll the second empty trolley into the stacker and continue production. Additional trolleys are available as an option.
